Plastic Processed:
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
485mm
Distance between Tie Bars(Height)(mm):
465mm
Mold Height(mm):
180 - 520 mm
Ejector Number:
4+1
Ejector Stroke(mm):
130 mm
Ejector Force(kN):
70 kN
Theoretical Shot Volume(cm³):
452 cm³
Injection Rate (g/s):
156.48 g/s
Machine Type:
Hydraulic
Injection Weight (g):
411 g
Screw Speed (rpm):
196 rpm
Screw diameter (mm):
48 mm
Screw L/D Ratio:
22
Distance between Tie Bars:
485x465 mm
Weight (KG):
5500
Type:

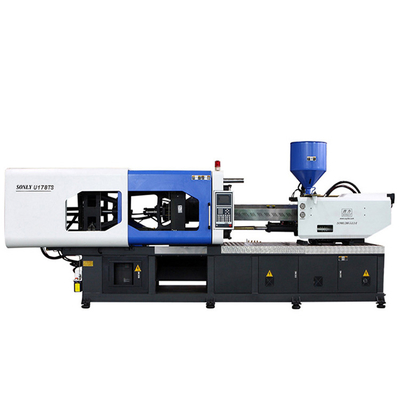

Injection molding machine
Place of Origin:
Zhejiang, China
Open Stroke(mm):
450 mm
Model Number:
U178TS
Фирменное наименование:
SONLY
Power (kW):
22 kW
Warranty:
1 Year
Key Selling Points:
High Productivity
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Construction works , Food & Beverage Shops, Other
Showroom Location:
Egypt, Turkey, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Morocco, Chile, Algeria, Bangladesh, South Africa, Nigeria, Uzbekistan, Malaysia
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Bearing, Motor, Pump, Gear, PLC, Other, Pressure vessel, Engine, Gearbox
BOUNDARY DIMENSION(L*W*H):
5.9*1.43*2.1 m
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Turkey, Peru, Indonesia, Mexico, Russia, Argentina, South Korea, Colombia, Algeria, Bangladesh, South Africa
Сертификация:
CE, ISO9001
Clamping Force (kN):
1780
