Plastic Processed:
PP, PET, Other
Condition:
New
Style:
Horizontal
Distance between Tie Bars(Width)(mm):
355mm
Distance between Tie Bars(Height)(mm):
315mm
Ejector Stroke(mm):
70 mm
Ejector Force(kN):
27 kN
Theoretical Shot Volume(cm³):
190 cm³
Injection Rate (g/s):
78 g/s
Machine Type:
Hydraulic
Injection Weight (g):
173 g
Screw diameter (mm):
38 mm
Distance between Tie Bars:
280mm*260mm
Weight (KG):
2700
Type:
Tube Head Injection
Place of Origin:
Zhejiang, China
Open Stroke(mm):
254 mm
Model Number:
FHG100
Фирменное наименование:
FUHONG
Power (kW):
17 kW
Warranty:
2 years
Key Selling Points:
High Productivity
Applicable Industries:
Manufacturing Plant
Showroom Location:
None
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pump, PLC
Plastic Type:
Thermoplastic
Automatic:
yes
Product name:

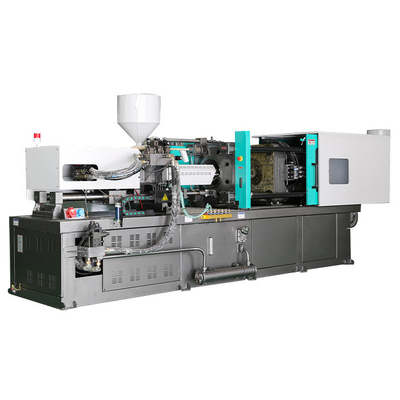

small 100ton pp plastic injection moulding machine price for sale
Injection pressure:
144mpa-170mpa
Screw Diameter:
35mm-38mm
Space between Tie Bar:
355mm*315mm
Mould thickness:
150mm-380mm
Ejector stroke:
70mm
Heating power:
6.9kw
Machine dimension(L*W*H):
3.81m*1.3m*1.7m
After-sales Service Provided:
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
After Warranty Service:
No service
Local Service Location:
None
Сертификация:
TUV CE
